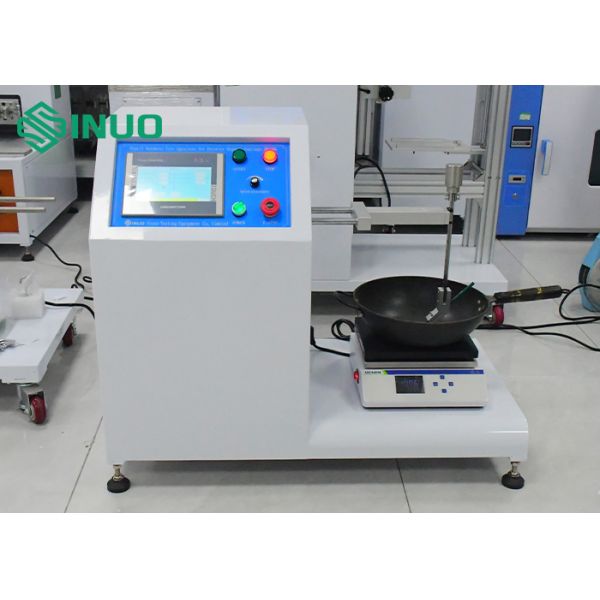

BS EN 12983-1 Cookware Coating Pencil Hardness Tester for Cookware Surface Hardness Evaluation
Product Description:
This Pencil Hardness Tester is specially engineered to determine the scratch resistance and surface hardness of cookware coatings, particularly for non-stick and protective layers. Designed in alignment with BS EN 12983-1, this equipment provides reliable and repeatable results for coating performance verification.
With an integrated PLC control system, the tester enables automated operation, precise force control, and consistent testing conditions, making it an ideal solution for both laboratory analysis and production line quality control.
Core Advantages:
✔ Intelligent PLC Control System
Advanced PLC-based control ensures stable test execution, accurate load application, and improved repeatability compared to conventional manual testers.
✔ Standardized Scratch Resistance Testing
Implements the pencil hardness method to evaluate coating durability, adhesion, and wear resistance under controlled conditions.
✔ High Repeatability & Accuracy
Minimizes human error and ensures consistent results across different batches and operators.
✔ Durable & Industrial-Grade Design
Robust mechanical structure designed for continuous use in demanding testing environments.
✔ Easy Operation & Maintenance

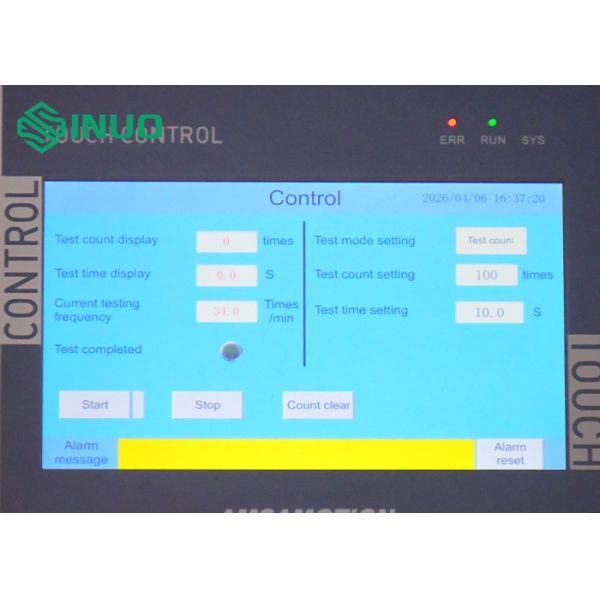

User-friendly interface simplifies setup and operation, reducing training time and increasing efficiency.
Technical Specifications:
| Parameter |
Specification |
| Power Supply |
AC 220V, 50Hz |
| Test Station |
1 |
| Drive Mode |
Electric + Eccentric Wheel Mechanism |
| Test Speed |
0–10 cycles/min (adjustable) |
| Scratch Length |
20–50 mm (adjustable), default 25 mm |
| Scratch Angle |
45° |

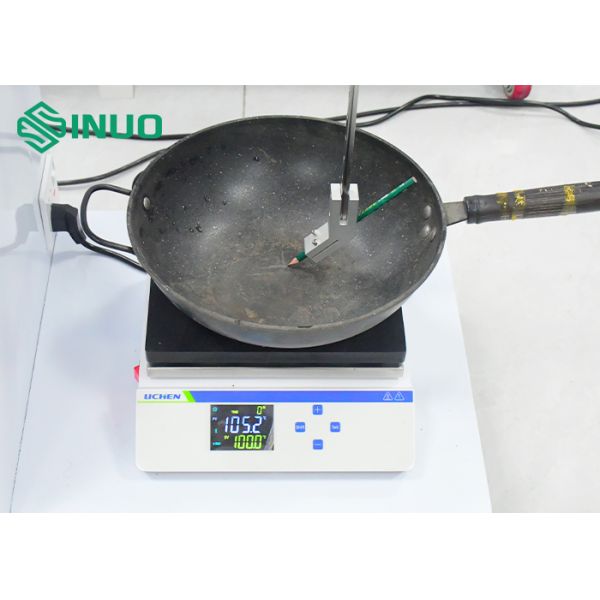

| Heating Platform Model |
DB-2EFS |
| Temperature Range |
RT +10°C ~ 420°C (±1°C) |
| Platform Size |
450 × 350 mm |
| Test Load |
4N, 8N |
| Pencil Grades |
HB, 2H, 3H, 4H, 5H |
| Control Mode |
PLC Control |
| Max Sample Size |
Ø400 mm |
| Overall Dimensions |
900 × 500 × 700 mm |
Why This Tester Matters:
Ensuring coating durability is critical for cookware performance and consumer safety. This tester allows manufacturers to accurately assess coating resistance against scratches and wear, helping to meet international compliance standards while improving product lifespan and brand credibility.
