IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package

Model Number : SN332-LP

MOQ : 1

Delivery Time : 5 Days

Dimensional Tolerance : ±2mm/±3mm

Price : Tailored

Temperature Type : ﹣1℃

Certification : Calibration Certificate (Cost Additional)

Payment Terms : T/T

Applied UUT : Refrigerator & Freezers

Weight Tolerance : ±2%

Weight Types : 125g, 250g, 500g, 1000g

Supply Ability : 1000 pcs Per Month

Applied Standards : IEC 62552,etc.

Brand Name : Sinuo

Packaging Details : Carton Box

Place of Origin : China

Contact Now

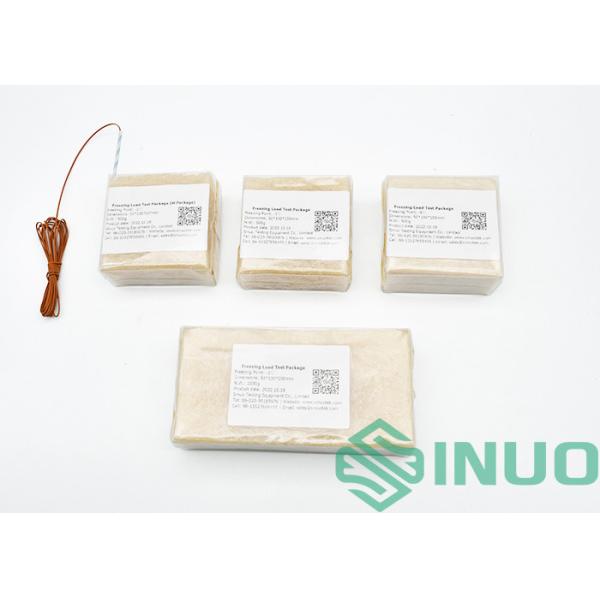

IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package
The M test package (hereinafter referred to as the test package) is a test package that is widely used worldwide to test the thermal performance of refrigerators, freezers, and freezers. It is safe, economical, and durable.
Composition of the Test Package
The -1℃ test package contains the following for every 1000g of filling material:
  • Hydroxyethyl methylcellulose: 230g
  • Water: 764.2g
  • Sodium chloride: 5g
  • Parachloro-meta-cresol: 0.8g
The freezing point of this filling material is -1℃, and its thermal properties are equivalent to lean beef.
Packaging material: A plastic film or suitable material having negligible water vapor exchange with the surrounding medium.
M package definition: A test package with a mass of 500g (50mm×100mm×100mm) with a thermocouple or other equivalent measuring device for temperature measurement installed at its geometric center. The thermocouple should be in direct contact with the packing, and measures should be taken to minimize external heat conduction. The thermocouple is 3.5 meters long.
Technical Parameters
Dimensions (mm) Weight (g) Dimensional Tolerance Weight Tolerance
50×100×100 500 ±2mm ±2%
IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package IEC 62552 Refrigerator Thermal Performance Test -1℃ M Test Package
